Tensik Raptor - Moblie Batching Plant

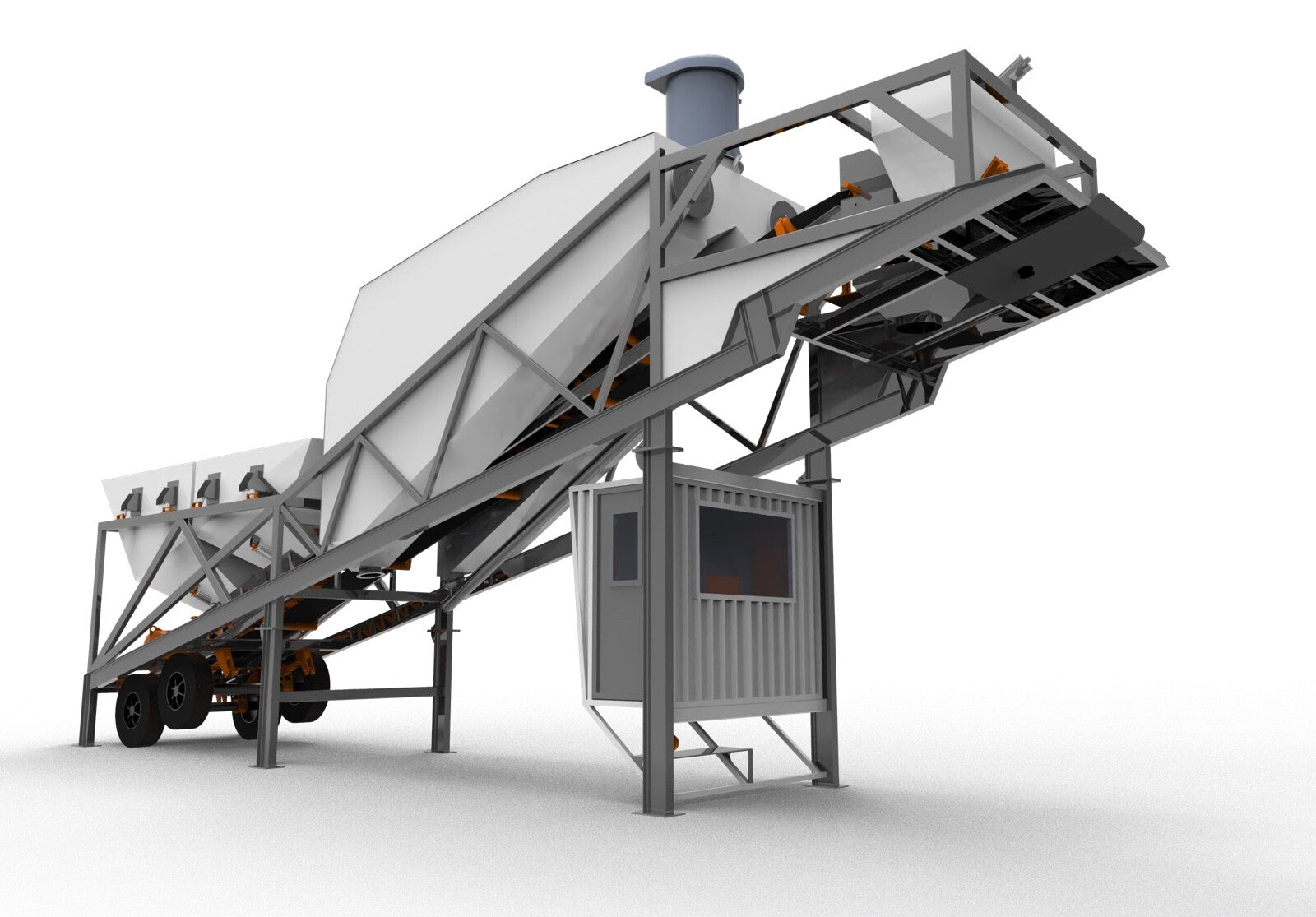

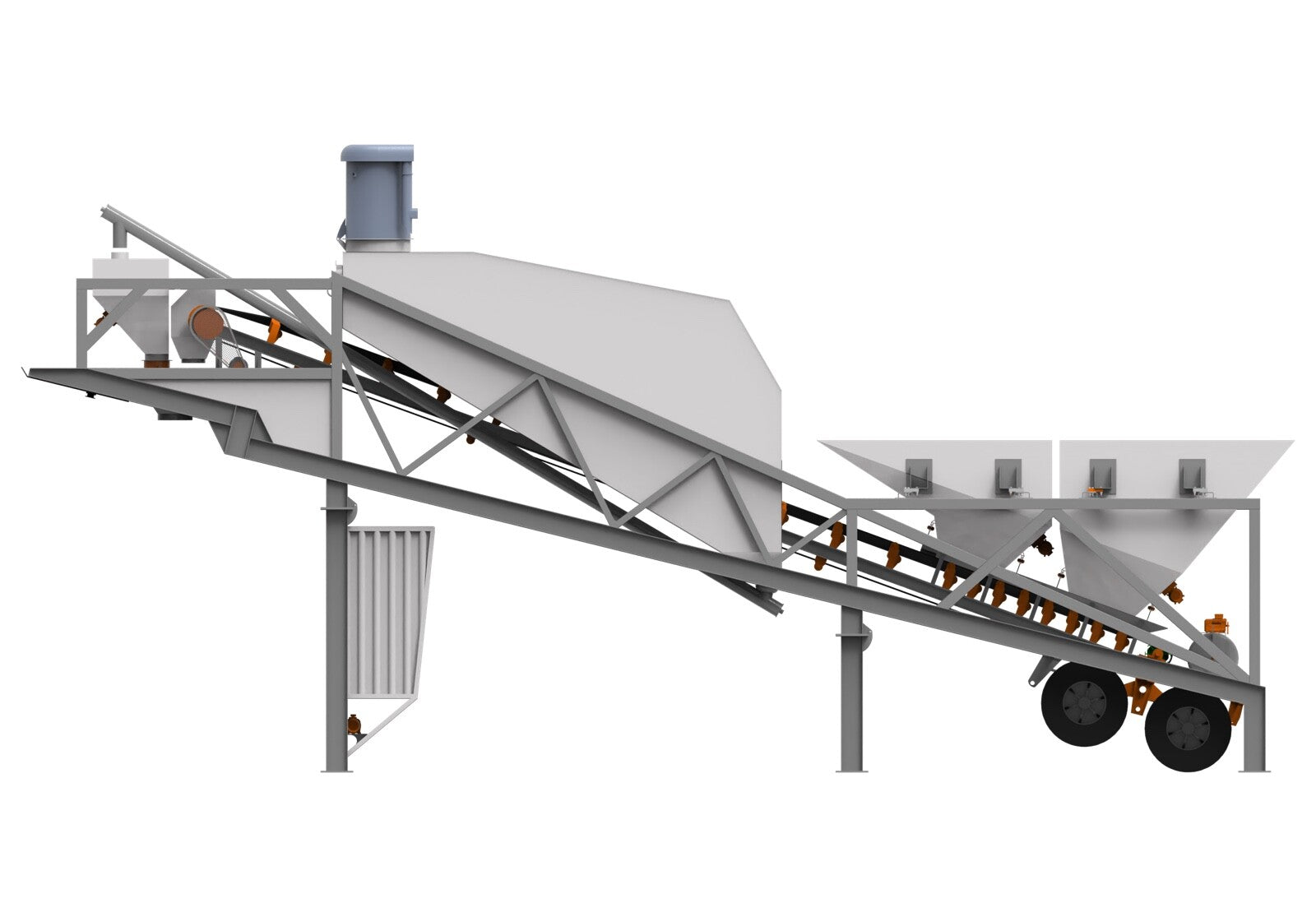

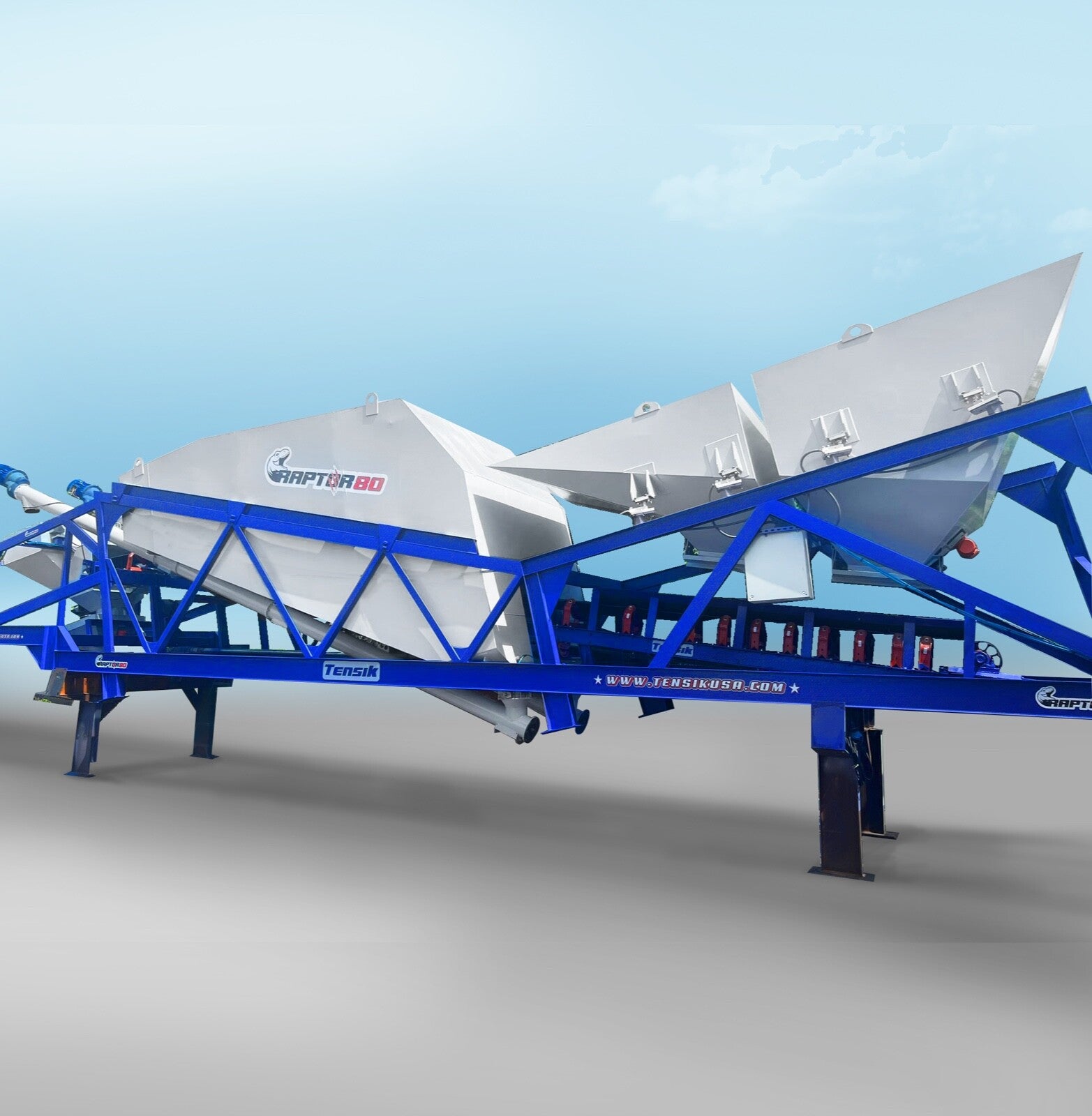

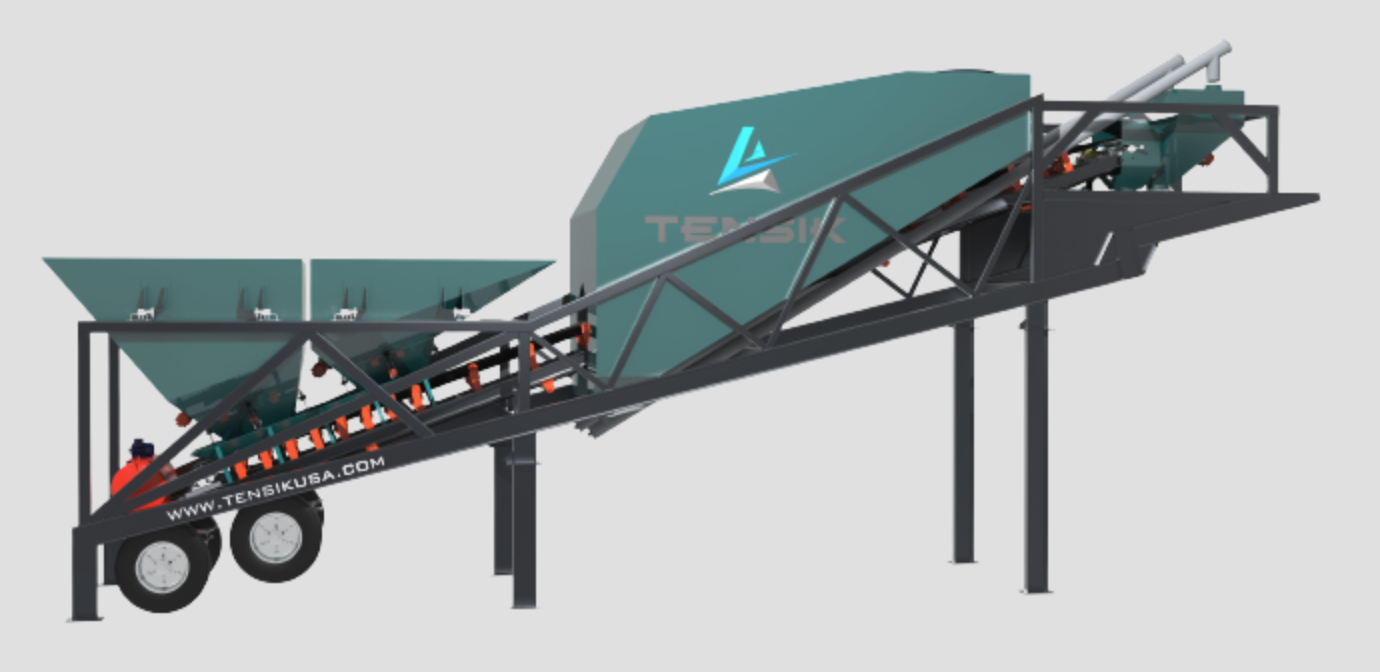

The Tensik RAPTOR (Made in USA)

Portable System:

– 2 scale hoppers bins decummulator with full weight capacity of 8yds each

– 8 load cells with a capacity of 20000lb each

– Pneumatic cylinder activated by solenoid valve to open and close the gates

– 2 MVE electric vibrator

Belt Conveyor:

– 40ft long conveyor Cema B with 24inch belt

– 15hp electric motor

– Pendular speed reducer double discharge selection

Cement System:

– 45-ton custom cement silo

– Fluidizing kit, pressure valve, dust collector

– 4 tons cement scale, 4 load cells 2500lbs with electric vibrator

– Automatic batch controller and manual controller

– Air compressor 7.5hp

– 2 Axle 20.000lb each

Water System:

– 5hp electric water pump with digital output-Badger meter with electronic output
